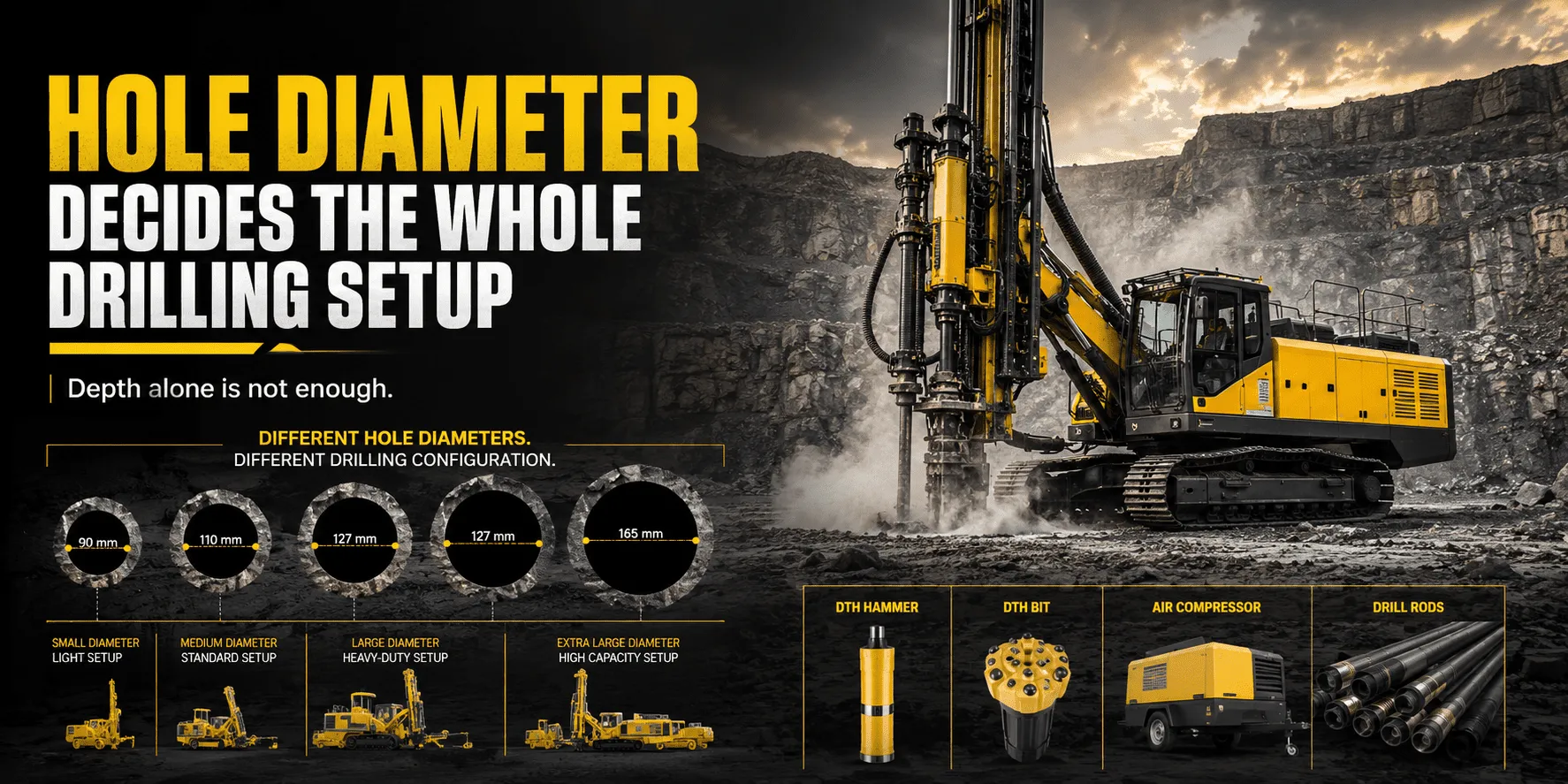

In many drilling projects, buyers first provide one basic requirement: drilling depth. Depth is important, but it is not enough to choose the right drilling equipment. Another key factor must be confirmed clearly before equipment selection: hole diameter.
Hole diameter is not just a size. It affects the complete drilling system, including drilling rig selection, DTH hammer size, drill bit diameter, air compressor pressure and air volume, drill rod configuration, cuttings removal, drilling speed, tool wear, and total project cost.
If the hole diameter is not matched correctly, the drilling rig may still operate, but the project may face slow penetration, weak hammer impact, poor hole cleaning, higher fuel consumption, faster tool wear, and unstable drilling performance.
Why Hole Diameter Should Be Confirmed Before Choosing Equipment
Different hole diameters require different drilling configurations. A small hole and a large hole may use different drill bits, different DTH hammer sizes, different air compressor capacity, and different drill rod arrangements.
For example, a water well drilling project with a larger hole diameter may require stronger air volume for cuttings removal. A quarry blasting hole with a specific diameter may require stable hole quality and consistent drilling speed. A construction drilling project may need accurate hole size and better control of drilling stability.
In real drilling projects, choosing a drilling rig only by maximum drilling depth is risky. The correct selection should consider both drilling depth and hole diameter, together with rock condition, working environment, drilling method, and long-term operation cost.
How Hole Diameter Changes the Whole Drilling Setup
Hole diameter directly affects the size and working demand of the drilling tools. When the hole diameter becomes larger, the drilling system usually needs stronger tool support and higher air demand.
| Configuration Item | How Hole Diameter Affects It | Possible Problem if Mismatched |
| Drill Bit | Bit diameter must match the required hole size | Wrong hole size, poor hole quality, and unstable drilling |
| DTH Hammer | Hammer size must match the drill bit and hole diameter | Weak impact, low penetration rate, or tool damage |
| Air Compressor | Larger holes usually require higher air volume for cuttings removal | Poor slag removal, slower drilling, and higher tool wear |
| Drill Rods | Rod size and strength should match depth, torque, and air flow demand | Lower stability, air loss, or connection problems |
| Drilling Rig | Rig must provide suitable rotation, feed force, and working stability | Machine overload, low efficiency, or unstable operation |
| Spare Parts | Larger or harder drilling conditions may increase wearing parts demand | Downtime caused by missing bits, hammer parts, or adapters |
Hole Diameter and DTH Hammer Selection
The DTH hammer is one of the most important parts affected by hole diameter. The hammer must match the drill bit size and provide enough impact energy for the required hole.
If the hammer is too small for the hole diameter, the drilling system may not deliver enough impact power. If the hammer is too large for the actual requirement, the buyer may face unnecessary air consumption, higher operating cost, and heavier tool investment.
| Hammer Selection Factor | What to Check | Why It Matters |
| Hammer Size | Match with hole diameter and drill bit size | Ensures stable impact energy transfer |
| Air Consumption | Match with compressor pressure and air volume | Supports hammer performance and continuous drilling |
| Rock Condition | Confirm whether the formation is soft, hard, or abrasive | Affects impact requirement and tool wear |
| Drilling Depth | Confirm working depth and air loss during drilling | Affects air supply and cuttings removal ability |
For DTH drilling, the hammer should not be selected separately. It should be matched together with the drill bit, air compressor, drill rods, rig capacity, and project conditions.
Hole Diameter and Drill Bit Matching
The drill bit directly determines the final hole size. However, drill bit selection is not only about diameter. Buyers should also consider button design, bit face structure, rock hardness, abrasiveness, air flushing, and expected tool life.
A larger bit may require more impact energy and stronger cuttings removal. If the air volume is not enough, rock chips may not be discharged smoothly from the hole. This can increase resistance, slow down drilling speed, and accelerate drill bit wear.
| Drill Bit Factor | Selection Focus | Project Impact |
| Bit Diameter | Match with required hole size | Affects hole quality and project accuracy |
| Button Design | Match with rock hardness and drilling method | Affects penetration rate and tool life |
| Bit Face Design | Support impact distribution and cuttings removal | Affects drilling stability and wear pattern |
| Shank Compatibility | Match with DTH hammer connection | Prevents compatibility and performance problems |
| Spare Bit Quantity | Prepare according to rock condition and project duration | Reduces downtime and urgent replacement pressure |
Hole Diameter and Air Compressor Demand
In DTH drilling, the air compressor has two major functions. It powers the DTH hammer and removes cuttings from the hole. Hole diameter directly affects both functions.
When the hole diameter becomes larger, there is more space inside the hole and more cuttings need to be removed. This often requires sufficient air volume. If the air volume is too small, cuttings may stay in the hole, which can reduce drilling speed and increase tool wear.
Air pressure is also important because it supports hammer impact. If the pressure is not enough, the hammer may not break the rock effectively. If the compressor is oversized without real need, the buyer may pay more for fuel, maintenance, and transportation.
| Compressor Parameter | Connection with Hole Diameter | Possible Risk if Wrong |
| Air Pressure | Supports DTH hammer impact performance | Weak hammer impact and slow penetration |
| Air Volume | Supports cuttings removal in different hole sizes | Poor hole cleaning and higher tool wear |
| Compressor Capacity | Must match hammer size, hole diameter, and drilling depth | Too small reduces efficiency; too large increases operating cost |
| Compressor Type | Diesel or electric selection depends on site conditions | Wrong type may reduce mobility or increase site difficulty |
Small, Medium, and Large Hole Diameters Need Different Priorities
Different hole diameter ranges require different equipment priorities. A practical drilling solution should not use the same setup for every hole size.
Small Hole Diameter
Small hole diameter projects usually focus on fast drilling, flexible operation, and lower operating cost. The equipment setup should avoid unnecessary oversizing. Buyers should focus on suitable rig capacity, correct drill bit size, stable air supply, and simple maintenance.
Medium Hole Diameter
Medium hole diameter applications are common in quarry, water well, and construction drilling. This range requires a balanced configuration between drilling speed, hammer impact, compressor capacity, and tool life.
Large Hole Diameter
Large hole diameter drilling usually requires stronger drilling tools, higher air volume, suitable rig stability, and better spare parts preparation. If the compressor or hammer is under-configured, the project may face poor cuttings removal, slow penetration, and higher fuel cost.
Extra Large or Special Hole Requirements
Some projects require special hole sizes for foundation, engineering, mining, or customized drilling applications. In these cases, standard equipment selection may not be enough. The full system should be evaluated according to site conditions, drilling method, tool matching, and long-term operation demand.
Hole Diameter in Quarry Drilling Projects
In quarry drilling, hole diameter affects blasting hole design, drilling speed, hole quality, and production efficiency. If the hole diameter does not match the blasting requirement, it may affect the final blasting result and material output.
Quarry projects usually involve limestone, granite, hard rock, or abrasive formations. The equipment package should consider drilling rig capacity, high-pressure air compressor, DTH hammer, drill bit, drill rods, and wearing parts together.
A practical quarry drilling solution should match hole diameter with rock hardness, blasting requirement, drilling depth, compressor capacity, and spare parts preparation.
Hole Diameter in Water Well Drilling Projects
In water well drilling, hole diameter affects casing plan, well structure, drilling depth, cuttings removal, and equipment configuration. A larger water well hole may require stronger air flushing and more stable drilling tools.
Water well drilling projects often face mixed ground conditions, such as soil, gravel, limestone, sandstone, and rock layers. Because the formation may change during drilling, the equipment package should be flexible and practical.
A complete water well drilling solution should consider hole diameter, drilling depth, ground condition, compressor matching, DTH tools, drill rods, and spare parts together.
Hole Diameter in Mining and Construction Drilling
Mining and construction drilling projects may have different hole diameter requirements depending on the application. Some projects require accurate holes for blasting, anchoring, foundation, slope support, or engineering work.
In these applications, hole diameter affects not only drilling speed, but also hole stability, tool configuration, and project accuracy. Choosing equipment only by drilling depth may cause wrong tool selection and unstable performance.
For special or mixed applications, a customized drilling solution can help buyers match the drilling rig, air compressor, DTH hammer, drill bit, drill rods, and spare parts according to real project needs.
How Hole Diameter Affects Total Project Cost
Hole diameter can change the total cost structure of a drilling project. Larger holes may need larger bits, suitable hammers, more air support, stronger rods, and more careful spare parts planning.
If the drilling system is not matched correctly, the buyer may face hidden costs after the equipment starts working on site.
| Cost Area | How Hole Diameter Affects It | Project Impact |
| Fuel Consumption | Larger holes may require stronger air compressor support | Higher daily operating cost if configuration is not optimized |
| Tool Wear | Wrong bit or hammer matching can increase wear | Higher drill bit and hammer parts replacement cost |
| Drilling Speed | Hole size affects penetration rate and cuttings removal | Slower project progress if air supply is not enough |
| Downtime | Wrong configuration may cause tool damage or frequent replacement | Delayed work and higher maintenance pressure |
| Spare Parts | Different hole sizes require different tools and wearing parts | Project stoppage if key parts are not prepared |
Common Mistakes When Buyers Ignore Hole Diameter
Many drilling problems can be reduced if hole diameter is confirmed clearly before equipment selection. Buyers should avoid the following common mistakes.
| Common Mistake | Possible Problem | Better Solution |
| Choosing rig only by drilling depth | Rig may not match the required hole diameter and tool setup | Confirm hole diameter, depth, and drilling method together |
| Using unsuitable DTH hammer size | Weak impact, low efficiency, or higher air consumption | Match hammer size with bit diameter and compressor capacity |
| Ignoring air volume demand | Poor cuttings removal and unstable drilling | Match compressor air volume with hole size and depth |
| Wrong drill bit selection | Fast wear, poor hole quality, or low penetration rate | Select bit diameter and structure according to project conditions |
| No spare parts plan | Tool shortage may stop the project | Prepare drill bits, hammer parts, rods, adapters, and filters |
What Information Should Buyers Provide Before Selection?
To recommend a suitable drilling equipment package, buyers should provide complete project information. This helps avoid general recommendations and improves configuration accuracy.
- Project type: quarry, mining, water well, construction, foundation, or exploration
- Required hole diameter
- Required drilling depth
- Rock or ground condition
- Required drilling method: DTH drilling, top hammer drilling, or other method
- Expected DTH hammer size if available
- Air compressor pressure and air volume if already selected
- Site condition: open quarry, remote area, mountain site, or construction site
- Power condition: diesel preferred or electric power available
- Expected working hours and project duration
- Spare parts and maintenance requirements
How Welldone Mining Helps Match Equipment by Hole Diameter
Welldone Mining provides drilling equipment solutions for quarry, mining, water well, construction, and customized drilling projects. We help buyers match drilling rigs, air compressors, DTH hammers, drill bits, drill rods, and spare parts according to real project requirements.
Instead of recommending equipment only by machine model, we focus on the full project condition. Hole diameter, drilling depth, rock condition, compressor demand, tool matching, and project cost should all be considered before choosing the final configuration.
| Welldone Mining Support | How It Helps Buyers |
| Hole Diameter Analysis | Confirms required hole size and matching drilling method |
| Drilling Rig Selection | Matches rig capacity with depth, hole diameter, and site condition |
| DTH Hammer and Bit Matching | Selects hammer size and drill bit diameter according to project needs |
| Air Compressor Matching | Matches air pressure and air volume with hammer, depth, and hole size |
| Drill Rod Configuration | Plans rod size and quantity according to depth and working intensity |
| Spare Parts Planning | Prepares drill bits, hammer parts, adapters, filters, and wearing parts |
| After-Sales Guidance | Supports technical communication, troubleshooting, and maintenance advice |
Conclusion
Hole diameter is not just a size. It decides the whole drilling setup. It affects drill bit selection, DTH hammer size, air compressor demand, drill rod configuration, drilling speed, tool wear, downtime risk, and total project cost.
For quarry drilling, hole diameter affects blasting hole quality and production efficiency. For water well drilling, it affects casing plan, depth performance, and cuttings removal. For mining and construction projects, it affects hole stability, project accuracy, and tool matching.
The smarter choice is not only asking how deep the drilling rig can drill. The smarter choice is confirming whether the complete drilling system can match the required hole diameter under real site conditions.
If you are planning a drilling project, you can share your project type, hole diameter, drilling depth, rock condition, site environment, power condition, and expected working hours. Welldone Mining can help you match the suitable drilling rig, air compressor, DTH hammer, drill bit, drill rods, spare parts, and after-sales support for your project.
