Top Hammer vs DTH Drilling for Quarry: Where Each One Wins
Every quarry drilling decision eventually comes back to one question: top hammer or down-the-hole. Ask a vendor and you will get the answer that matches what they sell. Ask the bench and you get a different answer, because the two systems are not better and worse — they are better and worse at different things. This article sets out where each one wins, so the choice follows the rock and the holes, not the catalogue.
Two Engines, Two Places
The difference between the two systems is simple to state and easy to overlook, and it explains almost everything downstream. In top hammer drilling, the percussive piston sits at the surface, at the top of the drill string, and its blow travels down the rod to the bit. In down-the-hole drilling, the piston sits in a hammer directly behind the bit, at the bottom of the hole, and strikes the bit there.
That one sentence is the whole decision. In top hammer, every blow has to travel the full length of the drill string, through every rod joint, before it reaches the rock — and energy is lost at every joint along the way. In DTH, the blow is generated millimetres from the bit face, so none of the energy is spent travelling. The consequence is that top hammer loses efficiency as the hole gets deeper, while DTH does not. That single fact splits the two systems across almost every quarry application.
The Depth Divide
Depth is the first and clearest divider. Top hammer is at its best in shallow holes, where the string is short, the energy loss is small, and the rig can move and collar quickly. As the hole deepens, every added rod adds a joint, and every joint bleeds energy from the blow. The penetration rate that a top hammer delivers at ten metres will not hold at thirty.
DTH is the opposite. Because the hammer is down at the bit, the blow energy is constant regardless of depth, and DTH penetration holds up far better as holes get long. On a deep bench, DTH is not just faster — it is more predictable, which is what a schedule needs. The depth point at which the two cross depends on the rock and the tooling, but the direction of the trade is always the same: shallower favours top hammer, deeper favours DTH.
The Diameter Divide
The second divider is hole diameter. Top hammer systems drive small-diameter bits efficiently — the sort of holes a small bench or a production line of closely spaced blast holes needs. DTH hammers scale up cleanly into large diameters, and in fact the largest blast holes are almost always DTH, because the downhole hammer delivers a heavier blow where the bit is, without the string having to carry it.
Put depth and diameter together and the typical quarry map emerges. Small, shallow blast holes on a low bench sit comfortably in top hammer territory. Large, deep holes on a tall face are DTH country. The middle ground — medium depth and diameter — is where the other variables decide, and the biggest of those is air.
Air: The Quiet Decider
Air consumption is the variable that surprises most buyers, and it should be a line item in the decision, not a footnote. The two systems use compressed air for completely different jobs.
Top hammer uses air mainly to flush the cuttings out of the hole. The percussive work is done mechanically by the piston at the surface, so the air demand is modest — enough to clear the hole, and little more. DTH uses air to drive the downhole hammer itself, and clearing the hole on top of that, so its air demand is far higher for the same job. A DTH rig that is not fed by a properly matched compressor simply does not drill — the hammer starves, the cuttings stall, and the bit grinds instead of breaks. The full air-volume arithmetic is in our bit and compressor matching guide.
The practical consequence is that a quarry choosing DTH is buying a compressor system, not just a rig — and the air supply has to be sized against the hole diameter and depth before the rig is selected. A top hammer rig can often run on a smaller compressor, which is a real capital and fuel saving where the holes are small enough that top hammer is the right call anyway.

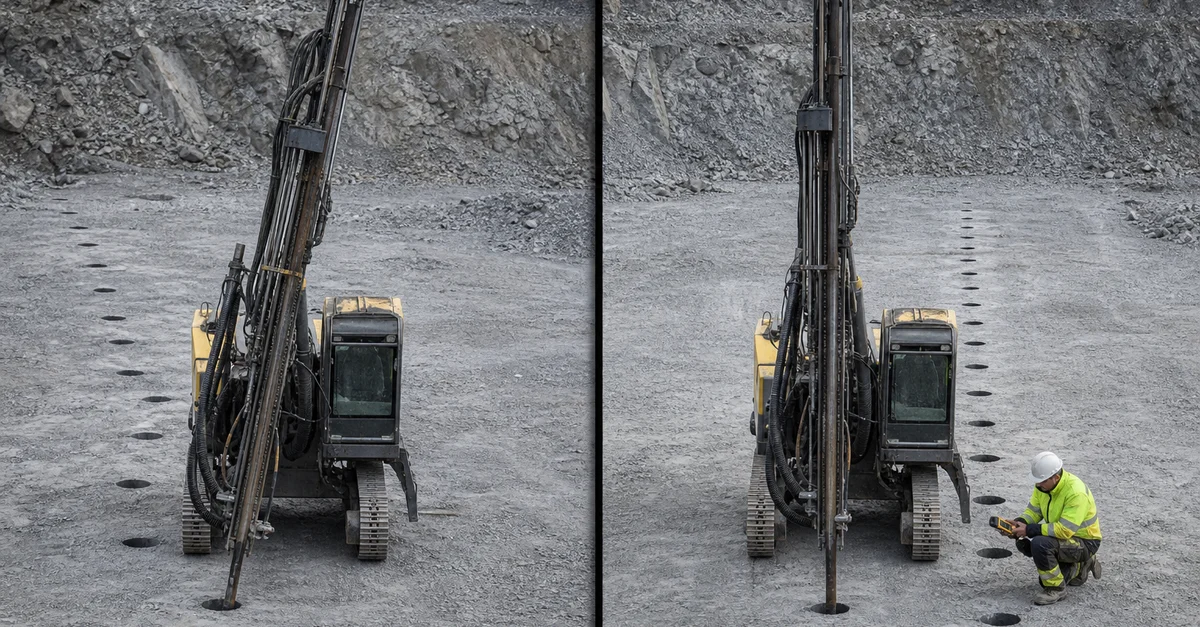

Straightness and Deviation
Hole straightness is a blast-quality issue before it is a drilling issue, and the two systems behave differently in the ground. Top hammer strings are relatively rigid over short depths, and in shallow holes they can hold a line well. DTH holds the advantage as holes deepen, because the downhole hammer keeps the energy at the bit and is less affected by the string whipping above it.
None of this removes the need to manage deviation — the collar alignment, the rod line, and the ground that steers the bit all still apply. But the choice of system shifts where the straightness risk sits, and on a deep bench, DTH is usually the more forgiving of the two. The geometry of drift and what it costs in the blast is set out in our penetration rate guide, and it feeds directly into how the bench should be drilled.
Rock and Ground
Rock hardness and abrasiveness push the decision in a consistent direction. Hard, abrasive formations punish top hammer tooling heavily, because the string and the shank take a beating transmitting every blow, and the couplings wear as fast as the bit. DTH puts the wear at the bottom, in the hammer and the bit, where it is a consumable cost rather than a machine stress — and the downhole hammer delivers the higher blow energy that hard rock demands.
Wet or water-bearing ground complicates both systems differently. DTH works well under water pressure, but wet holes and the mud they create interfere with flushing and bit life in ways our consumables guide covers. The key point for selection is that the rock should be known before the rig is chosen — the same drillability information that drives a realistic rate forecast is what separates a rig that fits the bench from one that fights it.
Capital, Tooling and Running Cost
The cost comparison is rarely a clean win for either system, because the costs sit in different places.
| Cost line |
Top hammer |
DTH |
| Rig capital |
Lower for small-hole, shallow work |
Higher — heavier rig, larger compressor package |
| Air supply |
Modest — flushing only |
Large — drives the hammer and flushes |
| Tooling |
Rods, shanks, couplings — wear on every joint |
Hammer and bit — wear concentrated at the bottom |
| Deep-hole performance |
Falls with depth — energy lost at each joint |
Constant — energy generated at the bit |
| Best fit |
Small, shallow, closely spaced blast holes |
Large, deep holes in hard or abrasive rock |
Read the table for the shape of the trade rather than a winner. Top hammer is often cheaper to buy and to feed with air, but its cost climbs with depth and hard rock. DTH is more expensive up front — rig and compressor together — but its cost per metre stays flat as holes deepen, and in hard ground it is usually the cheaper way to move rock. The full cost-per-metre picture, where tooling life and air consumption meet the drill rate, is in our cost per drilled metre guide.
The Decision Table
If the choice could be reduced to a single table, this is it — the condition that pushes toward each system.
| Condition on your bench |
Choose top hammer |
Choose DTH |
| Hole depth |
Shallow — short string, minimal energy loss |
Deep — constant blow energy at the bit |
| Hole diameter |
Small — closely spaced blast holes |
Large — big blast holes on a tall face |
| Rock |
Softer, less abrasive formations |
Hard, abrasive rock that wears the string |
| Air availability |
Limited air — runs on a smaller compressor |
Abundant air — the hammer is air-driven |
| Straightness risk |
Low risk — shallow, rigid string |
Deep holes — less affected by string whip |
| Cost profile |
Lower capital, rising cost with depth |
Higher capital, flat cost per metre at depth |
Most quarries do not run one or the other for the whole site. A low production bench and a high hard face can call for different systems, and a fleet that mixes them often out-earns one that is uniform for the sake of simplicity. The rig that is right is the one matched to the specific bench, not the one that won a general argument.
Why Welldone Mining
Welldone Mining supplies both, and we are indifferent to which one a quarry buys — the decision should be made by the bench, not by what is in stock. The role of the supplier is to make the trade-off explicit, then match the rig, the compressor, and the tooling to the choice.
What a quarry operator gets:
- A recommendation driven by your bench. Send hole depth, diameter, rock strength and quartz content, and available air, and the recommendation comes back with the reasoning — including the case for mixing systems across benches rather than standardising.
- The air sized to the method. Because DTH lives and dies on air, the compressor is matched to the hammer and hole diameter, so the rig drills at its rated rate instead of starving at the bit.
- Tooling matched to the wear point. Top hammer rods, shanks and couplings, or DTH hammers and bits — selected for the rock's abrasiveness so the cost per metre stays where the plan says it should.
Related Solutions
Conclusion
Top hammer and DTH are not competitors in the sense that one is obsolete and the other is modern. They are two ways of putting a blow on rock, and they fail in opposite directions. Top hammer is cheap to own and quick on a short, small hole, and it gives that advantage back as the hole deepens and the rock hardens. DTH costs more to put on the bench, and it repays that cost exactly where top hammer runs out of steam — in the deep, wide, hard holes that make a tall face productive.
Let the bench make the choice. Know the depth, the diameter, the rock, and the air before the rig is selected, and the decision stops being an argument and becomes arithmetic. Buy the system that fits the hole, and the cost per metre will take care of itself; buy the system that won the argument, and the bench will keep losing it.
One question for your own face: when you sized the last drill rig, did you start from the depth, diameter and rock of the bench — or from the machine that was already in the fleet?
Website: www.welldonemining.com
Email: info@welldonemining.com
Frequently Asked Questions
Which is faster, top hammer or DTH drilling?
It depends on depth and diameter. Top hammer is generally faster in shallow, small-diameter holes, where the short string means little energy is lost and the rig can collar and move quickly. DTH becomes faster as holes deepen and widen, because the blow is generated at the bit and does not lose energy travelling down the rod. There is no universal winner — the faster system is the one matched to the hole.
Why does DTH drilling need so much more compressed air?
Because in DTH the air does two jobs: it drives the downhole hammer piston and it flushes the cuttings out of the hole. Top hammer does its percussive work mechanically at the surface, so its air is only for flushing. This is why a DTH rig is really a rig plus a properly matched compressor, and why the air supply must be sized against the hammer and hole diameter before the rig is selected.
Is top hammer cheaper than DTH?
Cheaper to buy and to feed with air for small, shallow holes — yes. But the comparison is not that simple. Top hammer's cost per metre rises with depth and hard rock, because energy is lost at every rod joint and the string and couplings wear. DTH costs more up front, but its cost per metre stays flat at depth and it is usually the cheaper way to move hard rock on a deep bench. Compare them on cost per metre, not on rig price.
Can I run both systems in the same quarry?
Yes, and many well-run quarries do. A low bench with small, shallow blast holes can sit comfortably in top hammer territory, while a tall, hard face with large, deep holes is DTH country. Mixing the two and matching each rig to its bench often out-earns standardising on one system for the sake of simplicity. The decision should be made bench by bench, not once for the whole site.
Can Welldone Mining help me choose between top hammer and DTH?
Yes. We supply both and make the recommendation from your bench rather than from inventory. Send your hole depth, hole diameter, rock strength and quartz content, bench height, and available compressed air to info@welldonemining.com. We return the system that fits each bench with the reasoning, the air requirement, and the tooling matched to the rock, including the case for mixing systems across your site.
